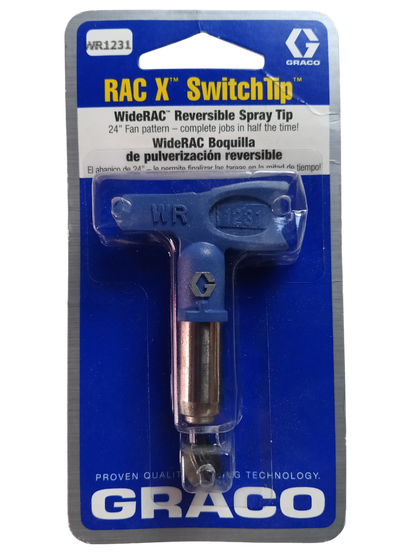

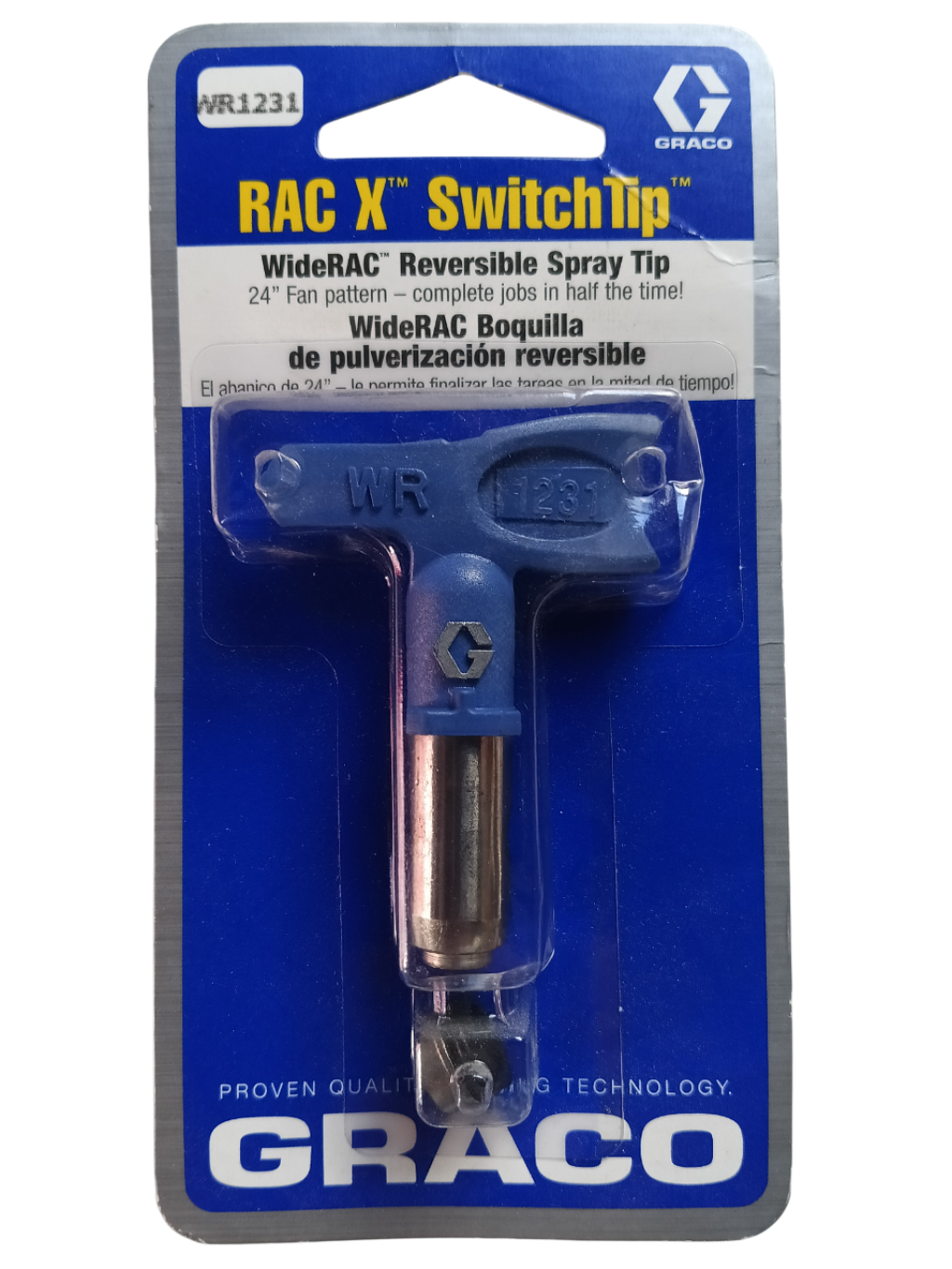

Graco WR1231 - WideRAC RAC X SwitchTip (WR1231)
Graco WR1231 - WideRAC RAC X SwitchTip (WR1231)
Low stock: 2 left
Couldn't load pickup availability
High-production WideRAC tip for broad-area spraying - Model WR1231. Designed to speed coverage on large surfaces, the WR1231 WideRAC RAC X SwitchTip offers wide fan output and quick reverse action to clear clogs and reduce downtime on heavy jobs.
What’s Included
- (1) WR1231 WideRAC RAC X SwitchTip - sold as a single tip
Key Features
- WideRAC design for high-production coverage - covers large areas quickly
- Reverse-A-Clean action reverses to eject clogs and keep spraying continuous
- OneSeal tip gasket installs by hand; solvent seal option for hot solvents
- Locking tab secures the tip in the guard and snaps between spray and reverse positions
- Large raised tip size numbers remain legible even when covered in material
- Fits RAC-style guards and most RAC X-compatible airless spray guns for fast installation
Specifications
- Part number / Model: WR1231
- Tip family: WideRAC - RAC X
- Typical orifice diameter: approx. 0.031 in (verify with manufacturer)
- Pattern size / Recommended max fan width: approx. 24 in
- Approximate maximum flow rate: ~1.0 GPM (approx.)
- Maximum working pressure: up to 4050 psi
- Tip type: Airless - fits RAC X HandTite tip guards
- Typical use: high-production exterior and interior painting, large-area coatings
Care & Use
- Hand-tighten the OneSeal tip gasket and verify seating before spraying
- Use reverse action to clear clogs rather than forcing tips with tools
- Flush tip thoroughly after use to avoid material build-up and preserve fan quality
- Replace tip when the fan pattern becomes uneven or worn
- Store tips in a clean, dry place to protect the precision orifice
WR1231 - a WideRAC RAC X SwitchTip built for high-production, broad-area spraying with easy maintenance and long service life.
