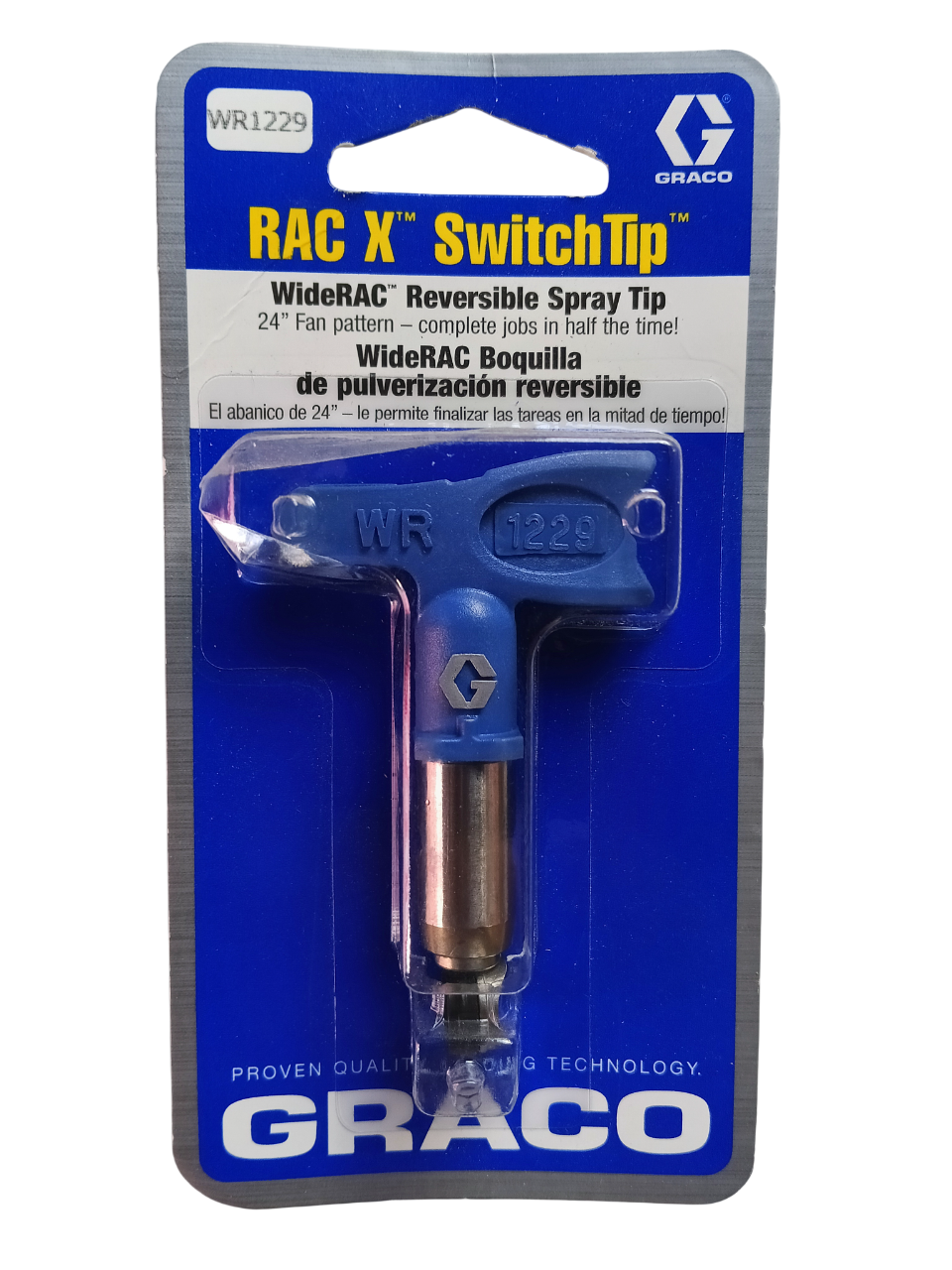

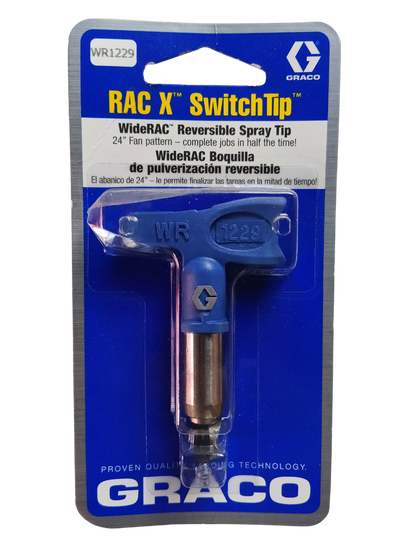

Graco WR1229 - WideRAC RAC X SwitchTip (WR1229)
Graco WR1229 - WideRAC RAC X SwitchTip (WR1229)
Low stock: 1 left
Couldn't load pickup availability
High-production WideRAC tip for fast, uniform coverage - Model WR1229. The WR1229 WideRAC RAC X SwitchTip delivers a very wide fan and high flow for large-area spraying, and features Reverse-A-Clean action to clear clogs quickly for uninterrupted spraying.
What’s Included
- (1) WR1229 WideRAC RAC X SwitchTip - sold as a single tip
Key Features
- WideRAC design covers large areas quickly for high production jobs
- Reverse-A-Clean action clears clogs without tools to minimize downtime
- OneSeal tip gasket installs by hand; solvent seal available for hot solvents
- Locking tab secures the tip in the guard and snaps between spray and reverse positions
- Large raised tip size numbers remain legible even when covered with material
Specifications
- Part number / Model: WR1229
- Tip family: RAC X - WideRAC SwitchTip
- Pattern size / Maximum fan width: 24 in (61 cm)
- Orifice diameter: 0.029 in
- Maximum flow rate: 0.9 GPM (3.41 L/min)
- Maximum working pressure: 4050 psi
- Tip type: Airless - for use with RAC X HandTite tip guard
- Typical use: high-production exterior and interior paint spraying, large-area coatings
Care & Use
- Hand-tighten the OneSeal tip gasket and verify seating before spraying
- Use reverse action to clear clogs rather than forcing tips with tools
- Flush tip thoroughly after use to avoid material build-up and preserve fan quality
- Replace tip when the fan pattern becomes uneven or worn
- Store tips in a clean, dry place to protect the precision orifice
WR1229 - WideRAC RAC X SwitchTip built for high-production, broad-area spraying with easy maintenance and long service life.
