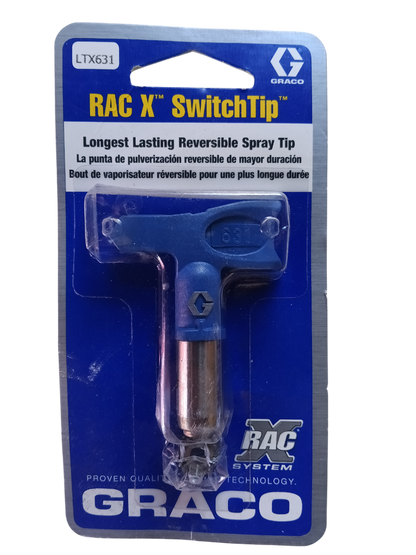

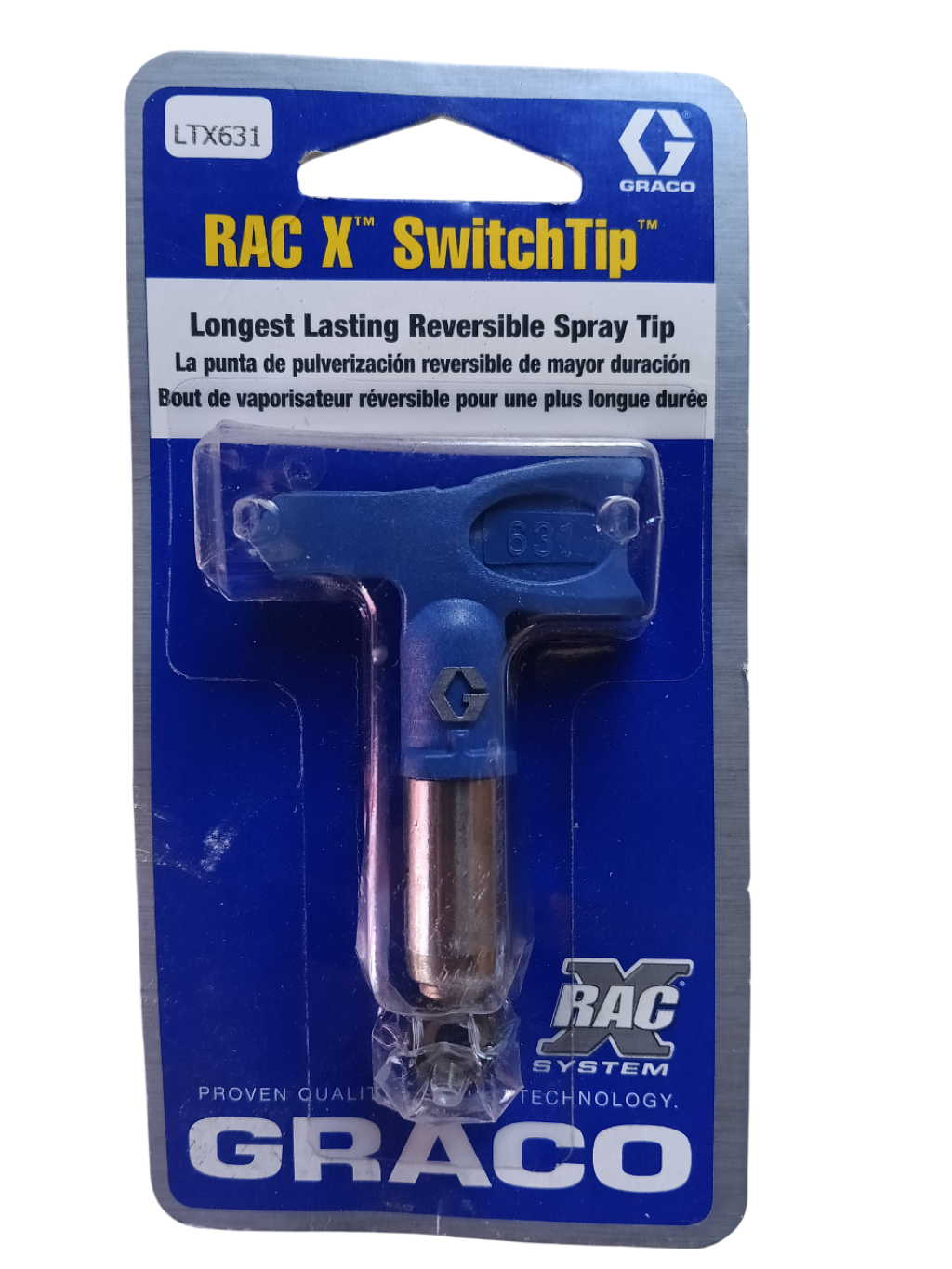

Graco LTX631 - RAC X LTX SwitchTip (631)
Graco LTX631 - RAC X LTX SwitchTip (631)
Low stock: 1 left
Couldn't load pickup availability
High-flow RAC X switchtip for large-area finishing - Model LTX631. The LTX631 produces a wide, uniform 12 to 14 inch fan and features a 0.031 inch orifice for efficient material laydown and professional-quality coverage. Reverse the SwitchTip to clear clogs quickly and continue spraying.
What’s Included
- (1) RAC X LTX SwitchTip - LTX631 (single tip)
Key Features
- Produces a 12 to 14 inch fan for broad, even coverage
- 0.031 inch orifice for high flow and efficient material laydown
- Reverse-A-Clean action reverses the tip to eject clogs quickly without tools
- OneSeal tip gasket installs by hand; solvent seal option available for hot solvents
- Large raised tip size numbers remain legible even when covered in material
- Locking tab secures the tip in the guard and snaps between spray and reverse positions
Specifications
- Part / Model: LTX631 (631)
- Tip family: RAC X - LTX SwitchTip series
- Orifice diameter: 0.031 in
- Pattern size: 12 to 14 in
- Maximum flow rate: 1.03 GPM (3.90 L/min)
- Maximum working pressure: 4050 psi (280 bar)
- Compatible materials: lacquer to mastic, latex paint
- For use with: RAC X HandTite tip guard
- Tip type: airless switch tip
Care & Use
- Hand-tighten the OneSeal tip gasket and verify seating before spraying
- Reverse the SwitchTip to clear clogs rather than forcing tips with tools
- Flush tip thoroughly after use to avoid material build-up and preserve fan quality
- Replace tip when the fan pattern becomes uneven or worn
- Store tips in a clean, dry place to protect the precision orifice
Graco LTX631 - a high-production RAC X switchtip built for large-area spraying, fast maintenance, and long service life.
