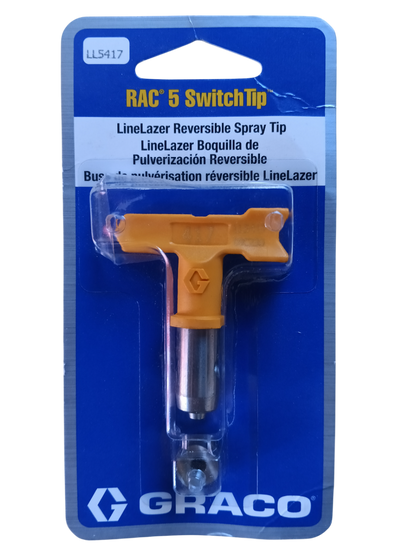

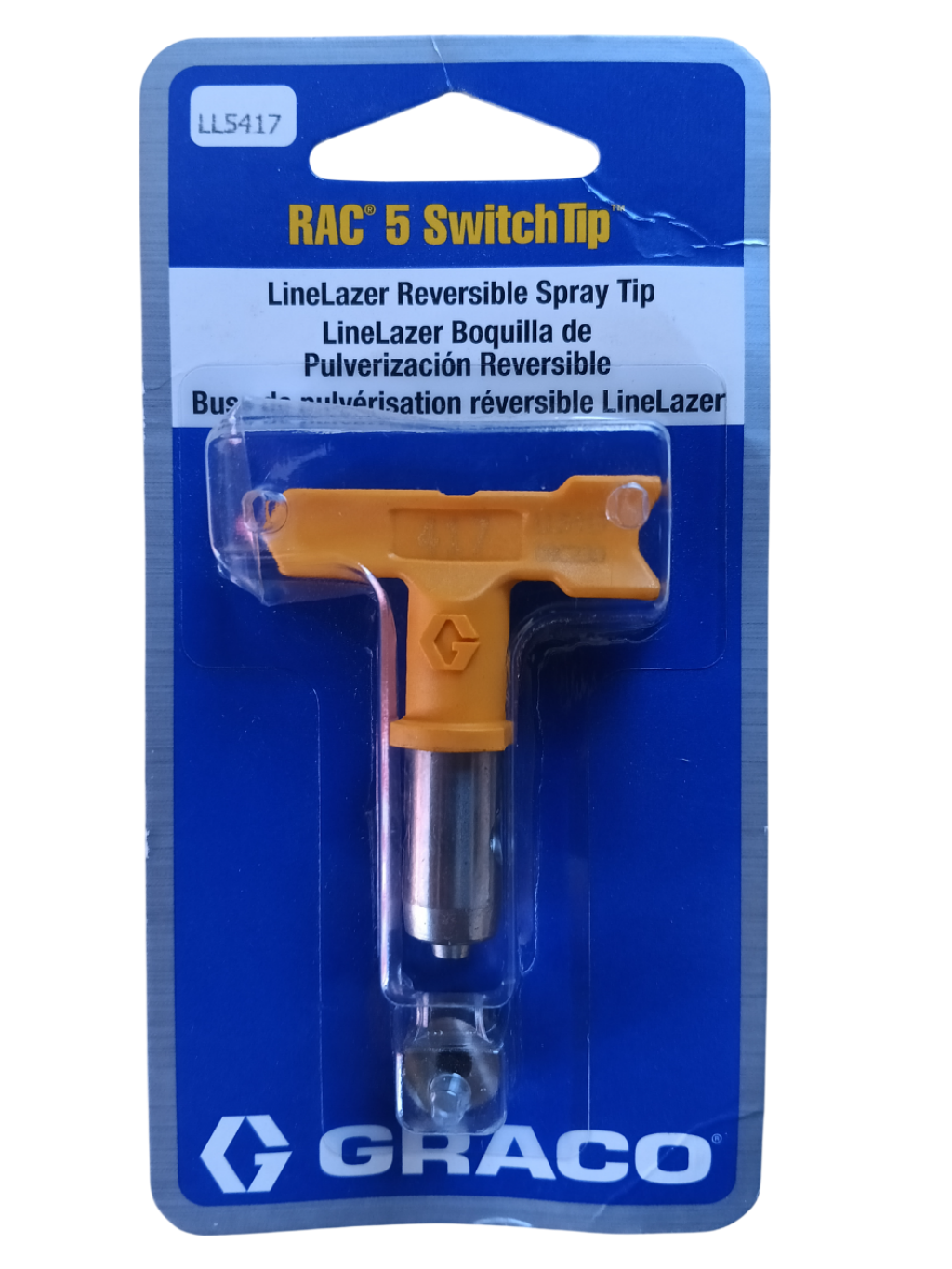

Graco LL5417 - LineLazer RAC 5 SwitchTip (417)
Graco LL5417 - LineLazer RAC 5 SwitchTip (417)
Low stock: 1 left
Couldn't load pickup availability
Line striping precision for high-production marking - Model LL5417. The LineLazer RAC 5 SwitchTip 417 is built for clean, laser-sharp line striping on parking lots, roads, warehouse floors, crosswalks, and athletic fields. It is optimized for traffic paints from heavy waterbase to thin alkyd formulations and minimizes overspray while ensuring a consistent paint thickness edge to edge.
What’s Included
- (1) LineLazer RAC 5 SwitchTip - LL5417 (417)
- Sold as a single tip; may ship loose or with minimal packaging and packaging may show signs of storage or handling
Key Features
- 0.017 in orifice sized for consistent traffic paint laydown
- Produces a clean 4 to 8 inch line width for precise pavement marking
- Fan angle 40 degrees for controlled, laser-sharp edges
- Reverse-A-Clean action clears clogs quickly to minimize downtime
- Designed specifically for LineLazer line striping systems and RAC-style guards
- Durable construction for long service life under heavy-use striping applications
Specifications
- Part number / Model: LL5417 (417)
- Type: LineLazer RAC 5 SwitchTip
- Orifice diameter: 0.017 in
- Maximum line width: 8 in (203 mm)
- Maximum fan width: 8 in (203 mm)
- Fan angle: 40 degrees
- Maximum flow rate: 1.17 L/min (approx.)
- Color coding: yellow (LineLazer identification)
- Typical use: parking lots, roads, warehouse floors, crosswalks, athletic field striping
Care & Use
- Hand-tighten the OneSeal tip gasket and verify seating before use
- Use reverse action to eject clogs rather than forcing the tip with tools
- Flush thoroughly after each use to prevent material build-up and preserve fan quality
- Inspect tip and replace when line edges become uneven or worn
- Store tip in a clean, dry place to protect the precision orifice
Graco LL5417 - a LineLazer RAC 5 switchtip engineered for accurate, high-production line striping and easy maintenance on the jobsite.
