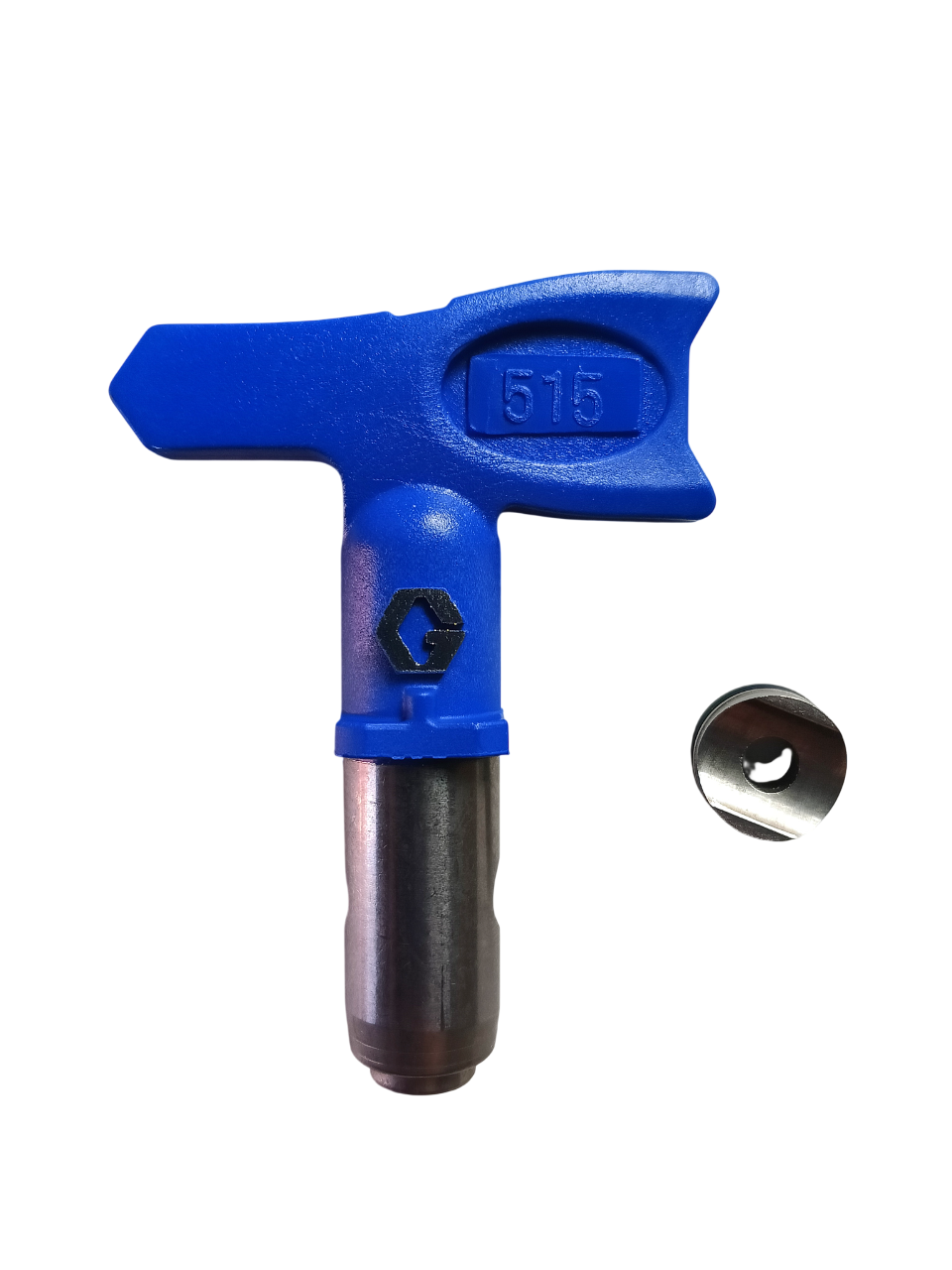

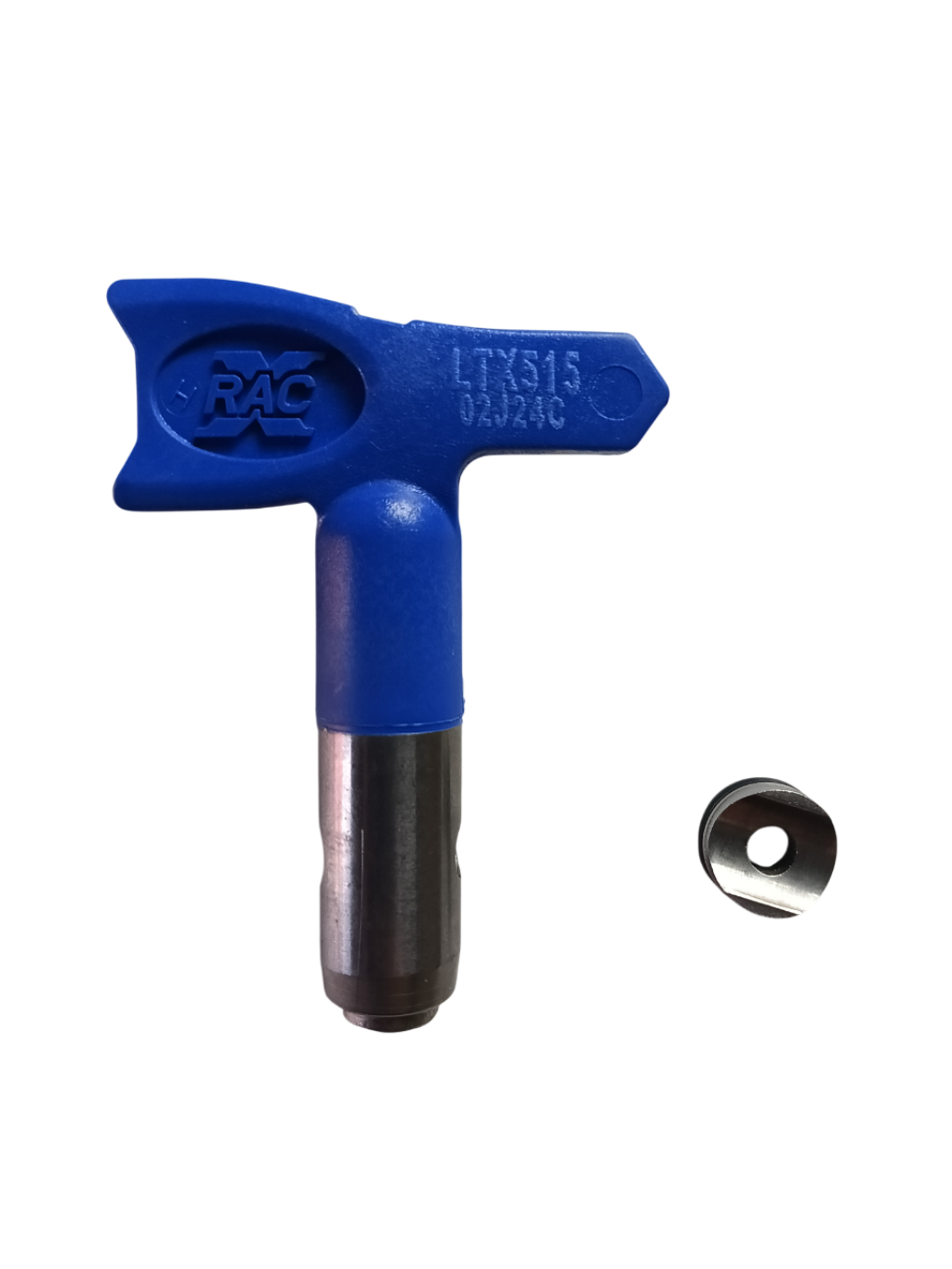

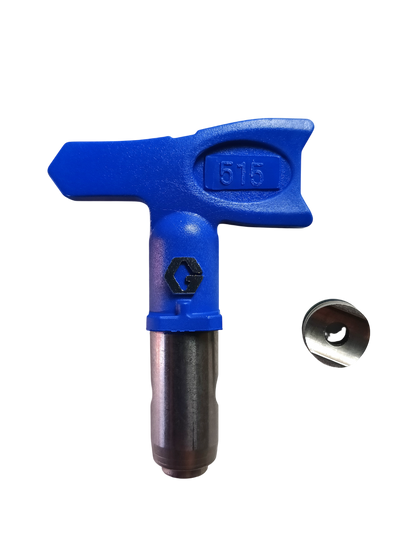

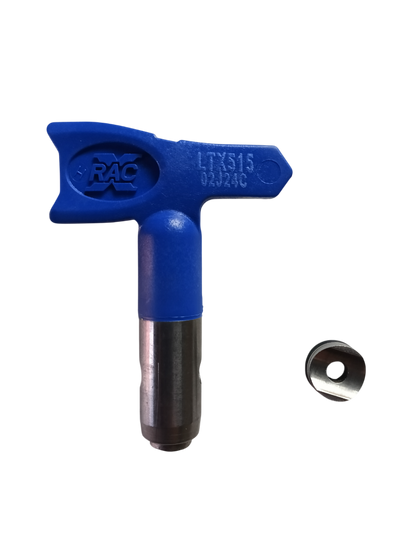

Graco Inc LTX515 - RAC X LTX SwitchTip (515) No Package

Reliable RAC X LTX SwitchTip for consistent, professional coverage - Model LTX515. The LTX515 produces a clean 10 to 12 inch fan and is built with durable carbide construction and Graco OneSeal for quick, tool-free installation and easy clog clearing.

What’s Included

• (1) RAC X LTX SwitchTip - LTX515 (sold as single tip)
• (1) OneSeal gasket included for hand installation

Key Features

• 0.015 inch orifice for fine to medium finishes and controlled atomization.
• 10 to 12 inch fan width for fast, even coverage on walls, ceilings, and large surfaces.
• Reverse-A-Clean action reverses the tip to eject clogs quickly and minimize downtime.
• Durable tungsten-carbide orifice for long wear in professional use.
• Designed to fit RAC X HandTite guards and common RAC-style systems for fast swapping on the job.

Specifications

• Model / Part: LTX515 (515)
• Orifice diameter: 0.015 in.
• Pattern size: 10 to 12 in.
• Typical flow rate: ~0.24 GPM (application dependent).
• Maximum working pressure: up to 4050 psi (check your system).
• Material: tungsten carbide or equivalent wear-resistant alloy.
• Tip type: Airless, reversible RAC X LTX SwitchTip with OneSeal

Care & Use

• Install OneSeal gasket by hand and verify the tip seats properly before spraying.
• Use the reverse action to clear clogs rather than forcing the orifice with tools.
• Flush thoroughly after each use to prevent material build-up and extend tip life.
• Replace the tip when the fan pattern becomes uneven or worn to maintain finish quality.
• Store tips in a clean, dry place to protect the orifice and markings.

Graco LTX515 - dependable RAC X switchtip for pros who need consistent fan shape, fast coverage, and easy maintenance on the jobsite.
