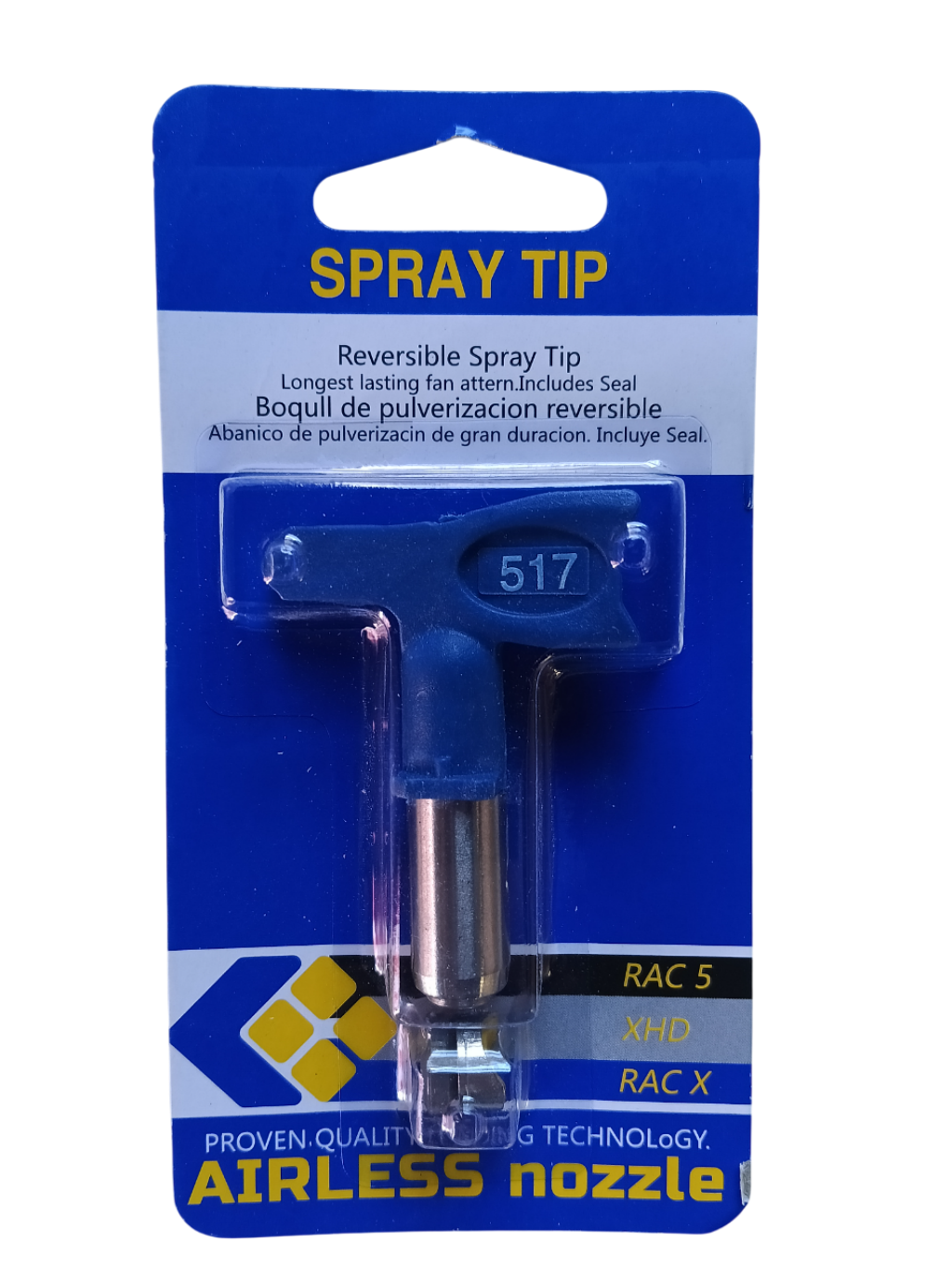

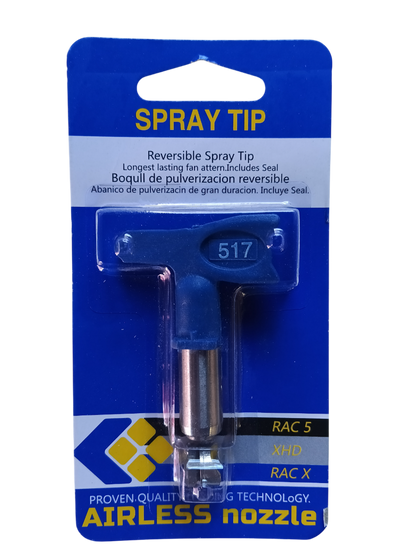

Generic 517 Spray Tip - Fine Finish Low Pressure SwitchTip (517)

High-coverage, low-pressure finishing - Model 517. This generic 517 SwitchTip is designed for broad-area fine finishing. It reduces required spray pressure to lower overspray while producing a wide, uniform fan for fast, consistent coverage on large surfaces.

What’s Included

• (1) Fine finish low-pressure SwitchTip - model 517 (sold as single loose tip)

Key Features

• Operates at reduced pressure to minimize overspray and cleanup
• Wide 14 to 16 inch fan pattern for rapid, even coverage of large areas
• Precision orifice and reverse action to clear clogs quickly and maintain spray continuity
• Durable, wear-resistant construction for extended tip life in professional use
• Raised size marking for quick identification when covered in material
• Fits RAC-style guards and most airless spray guns for easy installation

Specifications

• Model / Part: 517 (generic)
• Type: Fine finish low-pressure SwitchTip
• Typical orifice diameter: ~0.017 - 0.021 in (manufacturer specs may vary)
• Pattern size: approximately 14 to 16 in
• Approximate maximum flow rate: ~0.25 - 0.30 GPM
• Maximum working pressure: up to 4050 psi (application dependent)
• Material: tungsten carbide or comparable wear-resistant alloy
• Typical use: large-area architectural finishes, exterior and interior paints, stains, and varnishes

Care & Use

• Hand-tighten the tip gasket and verify seating before spraying
• Use reverse action to clear clogs without tools to minimize downtime
• Flush thoroughly after use to prevent material build-up and preserve fan quality
• Replace tip when fan pattern becomes uneven or worn
• Store in a clean, dry place to protect the precision orifice

Model 517 - a reliable low-pressure fine finish tip for pros who need broad coverage and easy maintenance.
