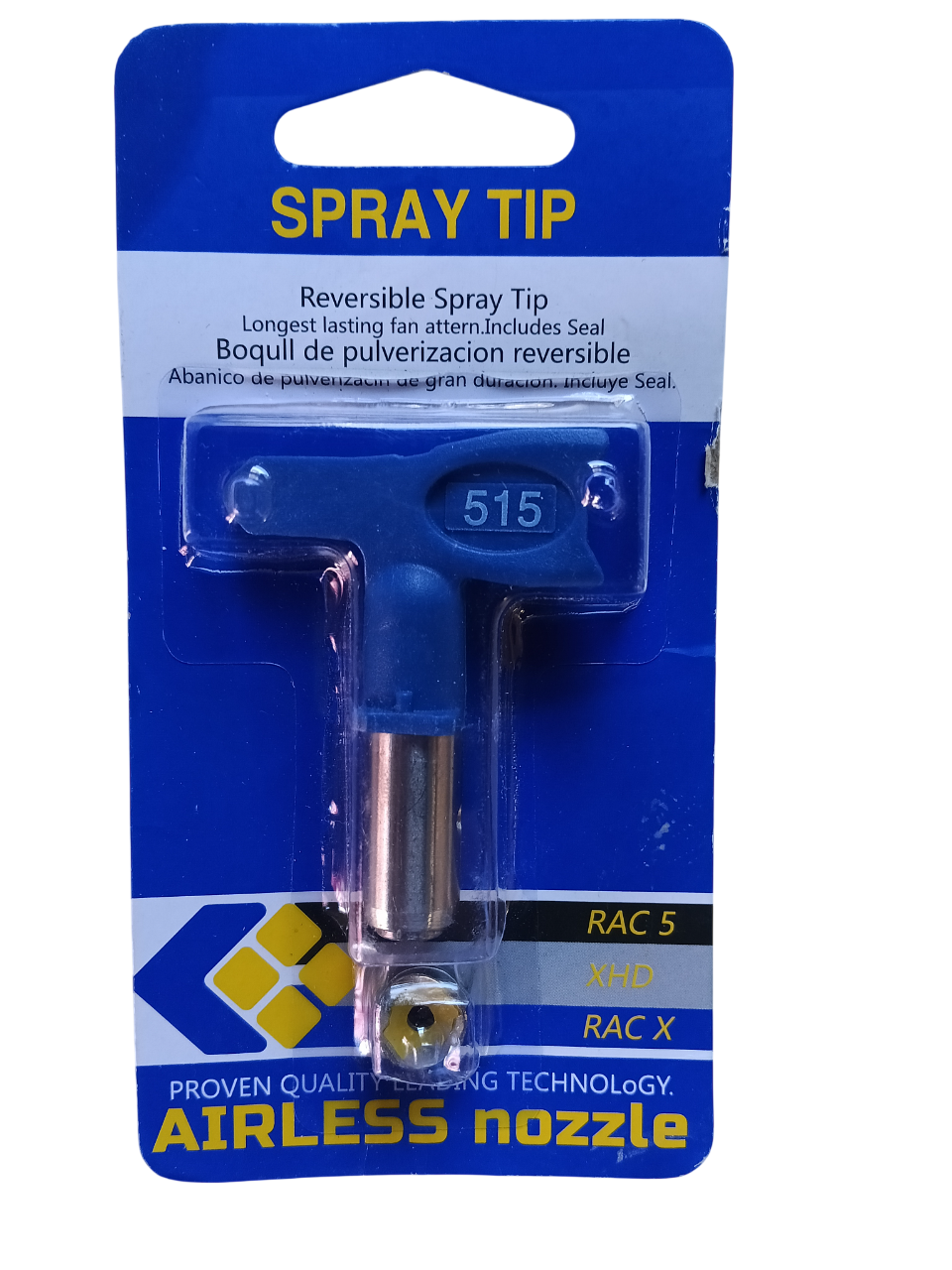

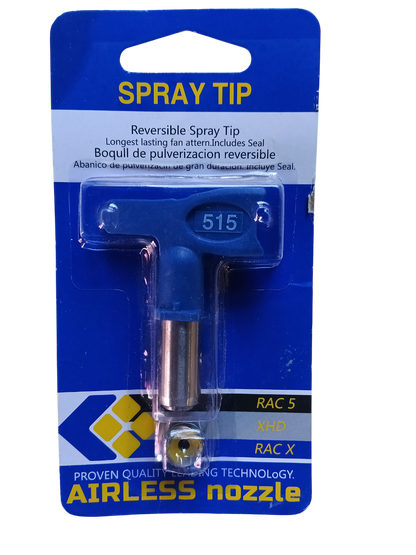

Generic 515 Spray Tip - Fine Finish Low Pressure SwitchTip (515)

Wide-area, low-pressure finishing - Model 515. This generic 515 SwitchTip is engineered for large-surface fine finish work. It lowers required spray pressure to reduce overspray while producing a broad, even fan for fast, consistent coverage and easier cleanup.

What’s Included

• (1) Fine finish low-pressure SwitchTip - model 515

Key Features

• Operates at reduced pressure to minimize overspray and cleanup
• Wide 12 to 14 inch fan pattern for rapid, even coverage of large areas
• Precision orifice for accurate atomization of finish coatings
• Reverse action clears clogs quickly to maintain spray continuity
• Durable, wear-resistant construction for extended tip life in professional use
• Raised size marking for quick identification even when covered in material
• Fits RAC-style guards and most airless spray guns for easy installation

Specifications

• Model / Part: 515 (generic)
• Type: Fine finish low-pressure SwitchTip
• Typical orifice diameter: ~0.014 - 0.016 in (manufacturer specs may vary)
• Pattern size: approximately 12 to 14 in
• Approximate maximum flow rate: ~0.20 - 0.24 GPM
• Maximum working pressure: up to 4050 psi (application dependent)
• Material: tungsten carbide or comparable wear-resistant alloy
• Typical use: large-area architectural finishes, exterior and interior paints, stains, and varnishes

Care & Use

• Hand-tighten the tip gasket and verify seating before spraying
• Use reverse action to clear clogs without tools to minimize downtime
• Flush thoroughly after use to prevent material build-up and preserve fan quality
• Replace tip when fan pattern becomes uneven or worn
• Store in a clean, dry place to protect the precision orifice

Model 515 - a reliable low-pressure fine finish tip for pros who need broad coverage and easy maintenance.
