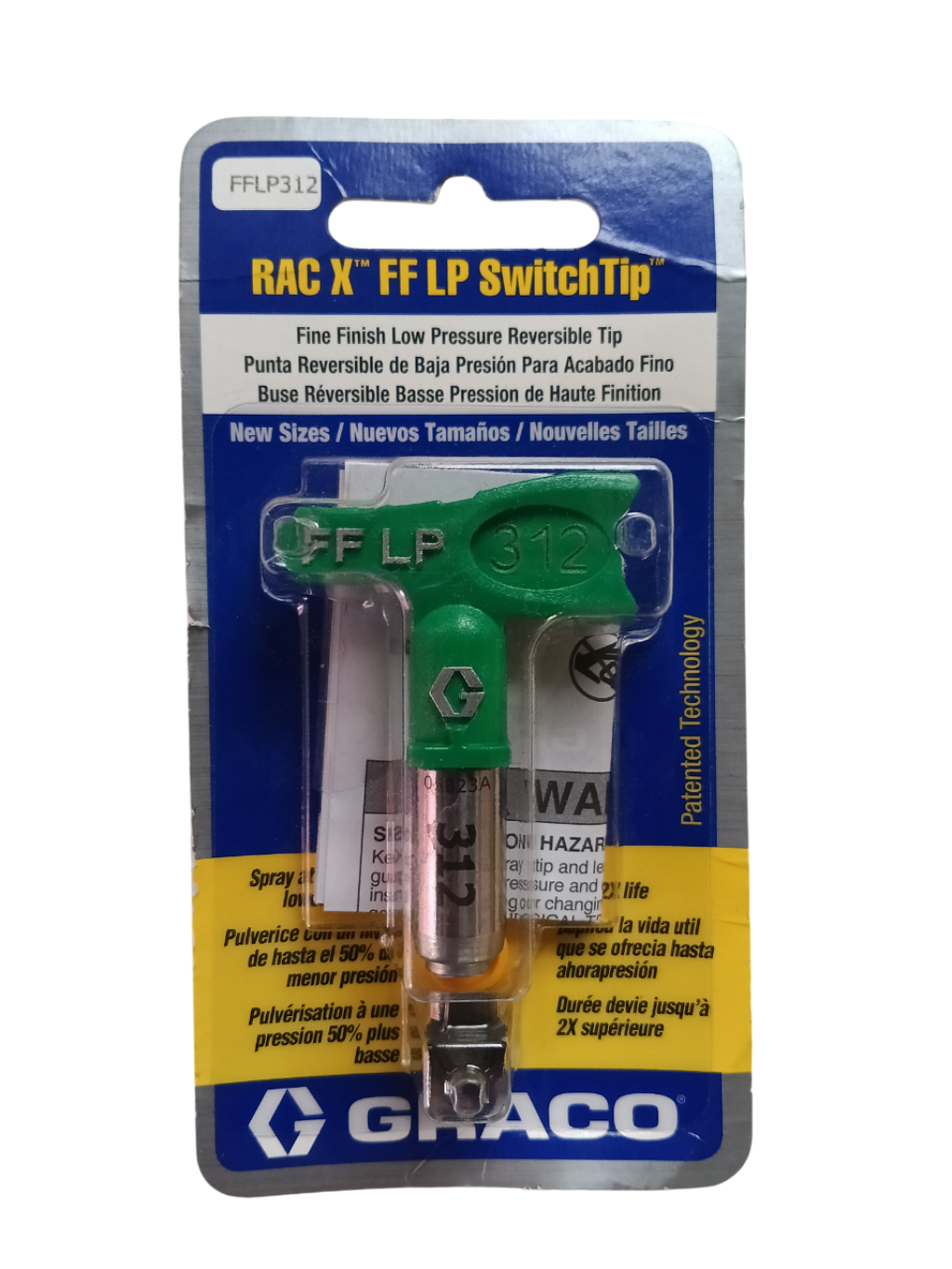

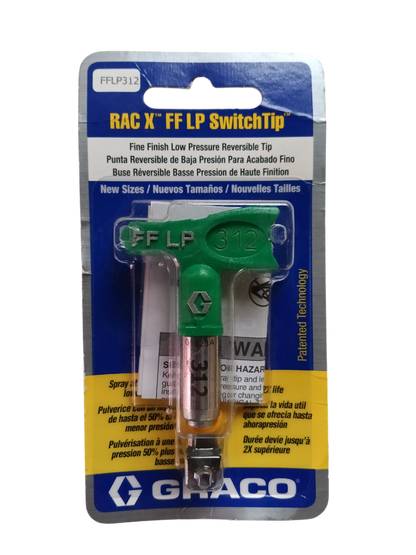

Graco FFLP312 - Fine Finish Low Pressure RAC X FF LP SwitchTip (312)
Graco FFLP312 - Fine Finish Low Pressure RAC X FF LP SwitchTip (312)
Low stock: 1 left
Couldn't load pickup availability
Low-pressure fine finish tip built for consistent, professional results - Model FFLP312. The FFLP312 RAC X FF LP SwitchTip is engineered to spray at significantly lower pressure for reduced overspray and extended tip life, while producing a broad, even fan suited for fine finishes and large-area coverage.
What’s Included
- (1) RAC X FF LP SwitchTip - Part number FFLP312
Key Features
- Sprays at reduced pressure to minimize overspray and cleanup
- Produces a soft 10 to 12 inch fan pattern for broad, uniform coverage
- Typical orifice size 0.012 inch for precise atomization of finish coatings
- Reverse-A-Clean SwitchTip reverses to clear clogs quickly without tools
- SmartTip internal geometry reduces energy needed to atomize coatings and extends tip life
- Large raised tip size numbers for easy identification even when covered in material
- OneSeal tip gasket installs by hand with no tools; solvent seal option available for aggressive solvents
Specifications
- Part number: FFLP312
- Series: FF LP SwitchTip
- Model family: RAC X
- Orifice diameter: 0.012 in
- Pattern size: 10 to 12 in
- Maximum flow rate: ~0.20 GPM
- Maximum working pressure: up to 4050 psi
- Material: tungsten carbide or comparable wear-resistant alloy
- Typical use: architectural and fine finish coatings, varnishes, stains, and enamels

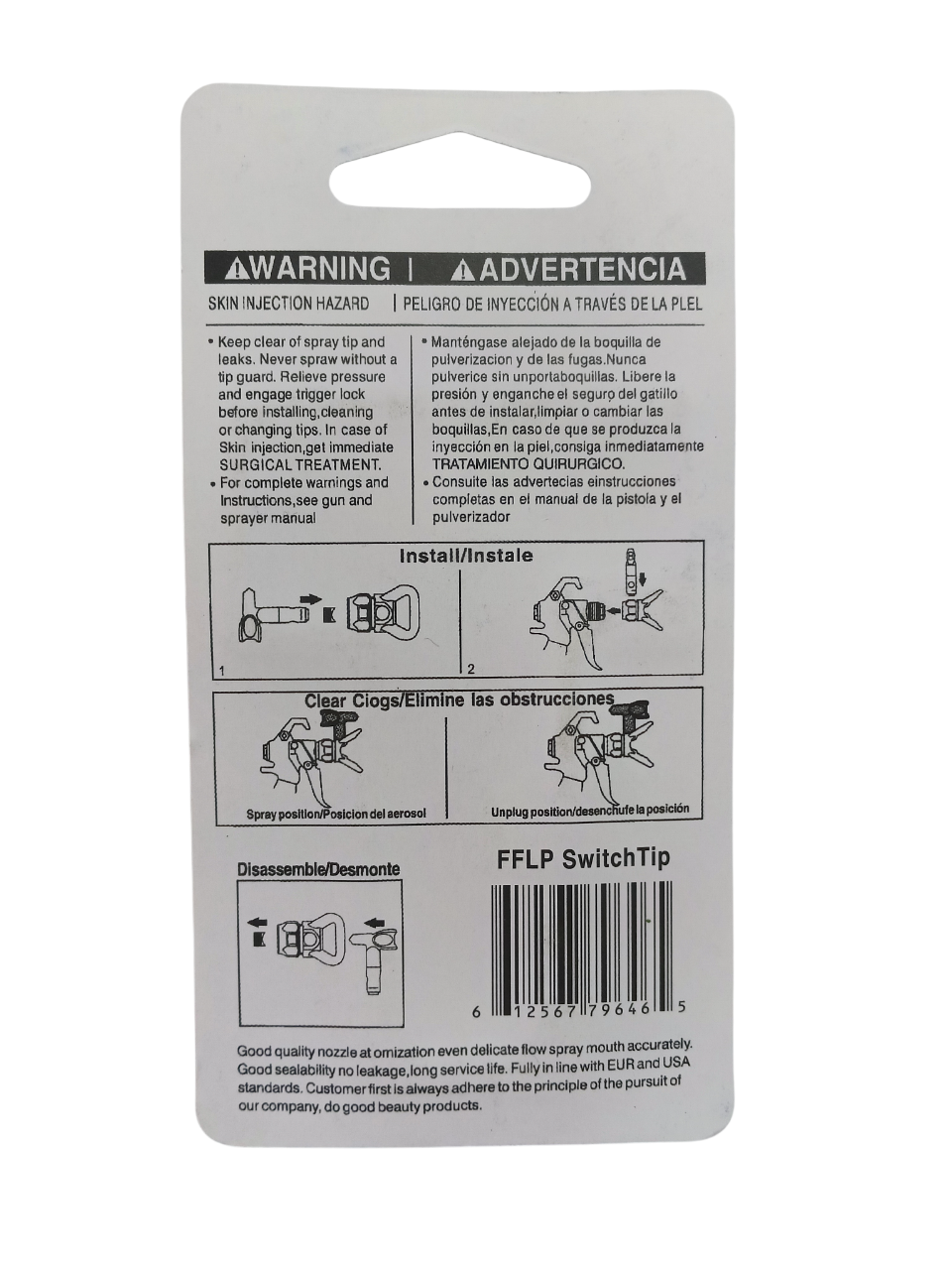

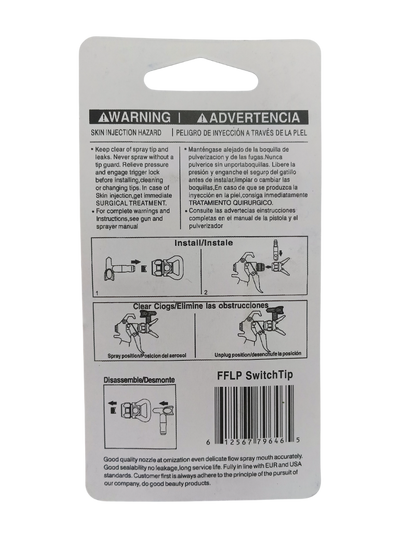

Care & Use
- Install the OneSeal tip gasket fully and hand-tighten; use solvent seal for hot or aggressive solvents
- Reverse the SwitchTip action to clear clogs quickly and maintain spray continuity
- Flush tip thoroughly after use to prevent material build-up and preserve fan quality
- Inspect tip numbers and replace when fan pattern becomes uneven or worn
- Store tips in a clean, dry place to protect the precision orifice
Graco FFLP312 - a durable, low-pressure fine finish tip that delivers uniform coverage and easy maintenance for professional sprayers.
